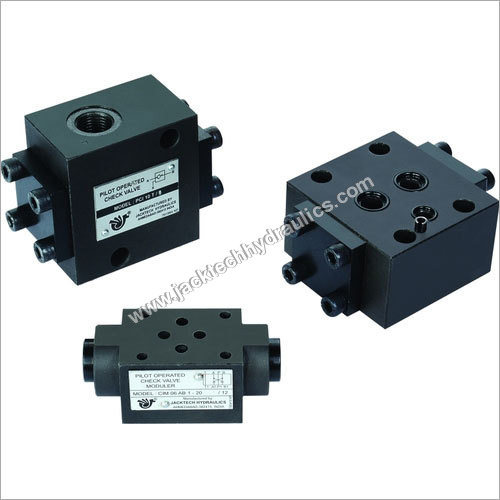

Pilot Operated hydraulic Check Valve

Pilot Operated hydraulic Check Valve

1200 INR/Piece

Product Details:

  • Size 1/2
  • Usage General Hydraulic, Constrction Machinery, Agricultural Mahicnery ect
  • Color Black
  • Product Type Pilot Operated hydraulic Check Valve
  • Product Name Pilot Operated hydraulic Check Valve
  • Material Forged, Carbon Steel
  • Power Hydraulic
  • Click to view more
X

Pilot Operated hydraulic Check Valve Price And Quantity

  • 1200 INR/Piece
  • 1 Piece

Pilot Operated hydraulic Check Valve Product Specifications

  • Pilot Operated hydraulic Check Valve
  • 1/2
  • General Hydraulic, Constrction Machinery, Agricultural Mahicnery ect
  • Black
  • Pilot Operated hydraulic Check Valve
  • Forged, Carbon Steel
  • Hydraulic

Pilot Operated hydraulic Check Valve Trade Information

  • 10000 Piece Per Month
  • 7 Days

Product Description

Our industry has designed Pilot Operated Check Valve to cater to the varied requirements of our prestigious clients for different applications like metering pumps, autoclaves, air & water lines, casting vents, and many more. The offered valve is designed and manufactured using high grade raw material that is also checked on several quality parameters, which ensure long lasting and flawless performance of it. This Pilot Operated Check Valve is used to take control over cylinders by keeping and locking those in position until pilot pressure is utilized.

Jacktech Pilot Operated Check Valve works by allowing free flow from the inlet port through the outlet port. Supplying a pilot pressure to the port allows flow in opposite direction. Air pressure on top of the poppet assembly opens the seal and allows air to flow freely. When the air flow stops, the poppet checks the trapped air.
Seat type valve, internal drain construction

  • Six sizes in threaded port body
  • Three sizes in Sub-plate mounting construction
  • Mounting interface confirms ISO 5781 (draft)

Technical Details

Application

General Hydraulic, Constrction Machinery, Agricultural Mahicnery ect

Size

1/2

Brand

Jacktech

Material

Forged, Carbon Steel

Model

PCI and CIM

Viscosity range

10 Cst to 380 Cst

Power

Hydraulic

Operating pressure

315 bar for ports A, B and X

Mounting style

Threaded pod or subplate mounting

Mounting Position

Optonal

Max. Working pressure

350 bar

Hydraulics medium

Mineral oil

Fluid cleanliness requirement

As Per ISO code 16/13 or better

Cracking pressure

1 bar

Construction

Seat type valve, with decompression poppet

Features:
  • Ability to resist pressure
  • Corrosion resistance
  • Compact design
  • High strength

Technical Specifications:

Size NG

Mass kgs

B1

B2

D1

D2

H1

L1

L2

6

2.5

66.5

85

22

G 1/4"

50

27.5

18.5

10

2.4

66.5

85

30

G 1/2"

50

27.5

18.5

16

4

79.5

100

36

G 3/4"

57

36.7

17.3

20

4

79.5

100

44

G 1"

57

36.7

17.3

25

8.1

97

120

54

G 11/4"

75

54.5

15.5

30

8.1

97

120

60

G 11/2"

75

54.5

15.5
